FLOTTA SAPR


DJI PHANTOM 4 PRO
AIRCRAFT
Weight (Battery & Propellers Included) 1388 g
Diagonal Size (Propellers Excluded) 350 mm
Max Ascent Speed S-mode: 6 m/s
P-mode: 5 m/s
Max Descent Speed S-mode: 4 m/s
P-mode: 3 m/s
Max Speed S-mode: 45 mph (72 kph)
A-mode: 36 mph (58 kph)
P-mode: 31 mph (50 kph)
Max Tilt Angle S-mode: 42°
A-mode: 35°
P-mode: 25°
Max Angular Speed S-mode: 250°/s
A-mode: 150°/s
Max Service Ceiling Above Sea Level 19685 feet (6000 m)
Max Wind Speed Resistance 10 m/s
Max Flight Time Approx. 30 minutes
Operating Temperature Range 32° to 104°F (0° to 40°C)
Satellite Positioning Systems GPS/GLONASS
Hover Accuracy Range Vertical:
±0.1 m (with Vision Positioning)
±0.5 m (with GPS Positioning)
Horizontal:
±0.3 m (with Vision Positioning)
±1.5 m (with GPS Positioning)
VISION SYSTEM
Vision System Forward Vision System
Backward Vision System
Downward Vision System
Velocity Range ≤31 mph (50 kph) at 6.6 ft (2 m) above ground
Altitude Range 0 - 33 feet (0 - 10 m)
Operating Range 0 - 33 feet (0 - 10 m)
Obstacle Sensory Range 2 - 98 feet (0.7 - 30 m)
FOV Forward: 60°(Horizontal), ±27°(Vertical)
Backward: 60°(Horizontal), ±27°(Vertical)
Downward: 70°(Front and Rear), 50°(Left and Right)
Measuring Frequency Forward: 10 Hz
Backward: 10 Hz
Downward: 20 Hz
Operating Environment Surface with clear pattern and adequate lighting (lux>15)
CAMERA
Sensor 1’’ CMOS
Effective pixels: 20M
Lens FOV 84° 8.8 mm/24 mm (35 mm format equivalent) f/2.8 - f/11 auto focus at 1 m - ∞
ISO Range Video:
100 - 3200 (Auto)
100 - 6400 (Manual)
Photo:
100 - 3200 (Auto)
100- 12800 (Manual)
Mechanical Shutter Speed 8 - 1/2000 s
Electronic Shutter Speed 8 - 1/8000 s
Image Size 3:2 Aspect Ratio: 5472 × 3648
4:3 Aspect Ratio: 4864 × 3648
16:9 Aspect Ratio: 5472 × 3078
PIV Image Size 4096×2160
3840×2160
2720×1530
1920×1080
1280×720
Still Photography Modes Single Shot
Burst Shooting: 3/5/7/10/14 frames
Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias
Interval: 2/3/5/7/10/15/20/30/60 s
Video Recording Modes H.265
C4K:4096×2160 24/25/30p @100Mbps
4K:3840×2160 24/25/30p @100Mbps
2.7K:2720×1530 24/25/30p @65Mbps
2.7K:2720×1530 48/50/60p @80Mbps
FHD:1920×1080 24/25/30p @50Mbps
FHD:1920×1080 48/50/60p @65Mbps
FHD:1920×1080 120p @100Mbps
HD:1280×720 24/25/30p @25Mbps
HD:1280×720 48/50/60p @35Mbps
HD:1280×720 120p @60Mbps
H.264
C4K:4096×2160 24/25/30/48/50/60p @100Mbps
4K:3840×2160 24/25/30/48/50/60p @100Mbps
2.7K:2720×1530 24/25/30p @80Mbps
2.7K:2720×1530 48/50/60p @100Mbps
FHD:1920×1080 24/25/30p @60Mbps
FHD:1920×1080 48/50/60 @80Mbps
FHD:1920×1080 120p @100Mbps
HD:1280×720 24/25/30p @30Mbps
HD:1280×720 48/50/60p @45Mbps
HD:1280×720 120p @80Mbps
Max Video Bitrate 100 Mbps
Supported File Systems FAT32 (≤32 GB); exFAT (>32 GB)
Photo JPEG, DNG (RAW), JPEG + DNG
Video MP4/MOV (AVC/H.264; HEVC/H.265)
Supported SD Cards Micro SD
Max Capacity: 128GB
Write speed ≥15MB/s, Class 10 or UHS-1 rating required
Operating Temperature Range 32° to 104°F (0° to 40°C)
GIMBAL
Stabilization 3-axis (pitch, roll, yaw)
Controllable Range Pitch: -90° to +30°
Max Controllable Angular Speed Pitch: 90°/s
Angular Control Accuracy ±0.02°
INFRARED SENSING SYSTEM
Obstacle Sensory Range 0.6 - 23 feet (0.2 - 7 m)
FOV 70° (Horizontal), ±10° (Vertical)
Measuring Frequency 10 Hz
Operating Environment Surface with diffuse reflection material, and reflectivity > 8% (such as wall, trees, humans, etc.)
REMOTE CONTROLLER
Operating Frequency 2.400 - 2.483 GHz and 5.725 - 5.825 GHz
Max Transmission Distance 2.400 - 2.483 GHz (Unobstructed, free of interference)
FCC: 4.3 mi (7 km)
CE: 2.2 mi (3.5 km)
SRRC: 2.5 mi (4 km)
5.725 - 5.825 GHz (Unobstructed, free of interference)
FCC: 4.3 mi (7 km)
CE: 1.2 mi (2 km)
SRRC: 3.1 mi (5 km)
Operating Temperature Range 32° to 104°F (0° to 40°C)
Battery 6000 mAh LiPo 2S
Transmitter Power (EIRP) 2.400 - 2.483 GHz
FCC: 26 dBm
CE: 17 dBm
SRRC: 20 dBm
5.725 - 5.825 GHz
FCC: 28 dBm
CE: 14 dBm
SRRC: 20 dBm
Operating Current/Voltage 1.2 A@7.4 V
Video Output Port GL300E: HDMI
GL300F: USB

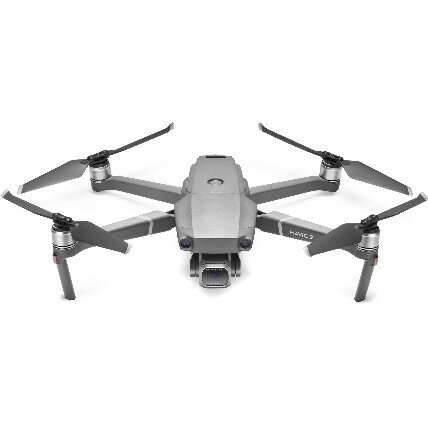

MAVIC 2 PRO
AIRCRAFT
Takeoff Weight
Mavic 2 Pro: 907 g
Mavic 2 Zoom: 905g
Dimensions
Folded:
214×91×84 mm (length×width×height)
Unfolded:
322×242×84 mm (length×width×height)
Diagonal Distance
354 mm
Max Ascent Speed
5 m/s (S-mode)
4 m/s (P-mode)
Max Descent Speed
3 m/s (S-mode)
3 m/s (P-mode)
Max Speed (near sea level, no wind)
72 kph (S-mode)
Max Service Ceiling Above Sea Level
6000 m
Max Flight Time (no wind)
31 minutes (at a consistent 25 kph)
Max Hovering Time (no wind)
29 minutes
Max Flight Distance (no wind)
18 km (at a consistent 50 kph)
Max Wind Speed Resistance
29–38 kph
Max Tilt Angle
35° (S-mode, with remote controller) 25° (P-mode)
Max Angular Velocity
200°/s
Operating Temperature Range
-10°C to 40°C
Operating Frequency
2.400 - 2.483 GHz
5.725 - 5.850 GHz
Transmission Power (EIRP)
2.400 - 2.483 GHz
FCC:≤26 dBm
CE:≤20 dBm
SRRC:≤20 dBm
MIC:≤20 dBm
5.725-5.850 GHz
FCC:≤26 dBm
CE:≤14 dBm
SRRC:≤26 dBm
GNSS
GPS+GLONASS
Hovering Accuracy Range
Vertical:
± 0.1 m (when vision positioning is active)
± 0.5 m (with GPS positioning)
Horizontal:
± 0.3 m (when vision positioning is active)
± 1.5 m (with GPS positioning)
Internal Storage
8 GB
VISION SYSTEM
Sensing System
Omnidirectional Obstacle Sensing1
Forward
Precision Measurement Range: 0.5 - 20 m
Detectable Range: 20 - 40 m
Effective Sensing Speed: ≤ 14m/s
FOV: Horizontal: 40°, Vertical: 70°
Backward
Precision Measurement Range: 0.5 - 16 m
Detectable Range: 16 - 32 m
Effective Sensing Speed: ≤ 12m/s
FOV: Horizontal: 60°, Vertical: 77°
Upward
Precision Measurement Range: 0.1 - 8 m
Downward
Precision Measurement Range: 0.5 - 11 m
Detectable Range: 11 - 22 m
Sides
Precision Measurement Range: 0.5 - 10 m
Effective Sensing Speed: ≤ 8m/s
FOV: Horizontal: 80°, Vertical: 65°
Operating Environment
Forward, Backward and Sides:
Surface with clear pattern and adequate lighting (lux > 15)
Upward:
Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)
Downward:
Surface with clear pattern and adequate lighting (lux > 15)
Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)
CAMERA
Sensor
1” CMOS
Effective Pixels: 20 million
Lens
FOV: about 77°
35 mm Format Equivalent: 28 mm
Aperture: f/2.8–f/11
Shooting Range: 1 m to ∞
ISO Range
Video:
100-6400
Photo:
100-3200 (auto)
100-12800 (manual)
Shutter Speed
Electronic Shutter: 8–1/8000s
Still Image Size
5472×3648
Still Photography Modes
Single shot
Burst shooting: 3/5 frames
Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias
Interval (JPEG: 2/3/5/7/10/15/20/30/60s RAW:5/7/10/15/20/30/60s)
Video Resolution
4K: 3840×2160 24/25/30p
2.7K: 2688x1512 24/25/30/48/50/60p
FHD: 1920×1080 24/25/30/48/50/60/120p
Max Video Bitrate
100Mbps
Color Mode
Dlog-M (10bit), support HDR video (HLG 10bit)
Supported File System
FAT32 (≤ 32 GB)
exFAT (> 32 GB)
Photo Format
JPEG / DNG (RAW)
Video Format
MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)
REMOTE CONTROLLER
720p@30fps / 1080p@30fps
DJI Goggles:
720p@30fps / 1080p@30fps DJI Goggles RE:
720p@30fps / 1080p@30fps
Latency (depending on environmental conditions and mobile device)
120 - 130 ms
Max Live View Bitrate
40Mbps
